Laser Cutting

Materials

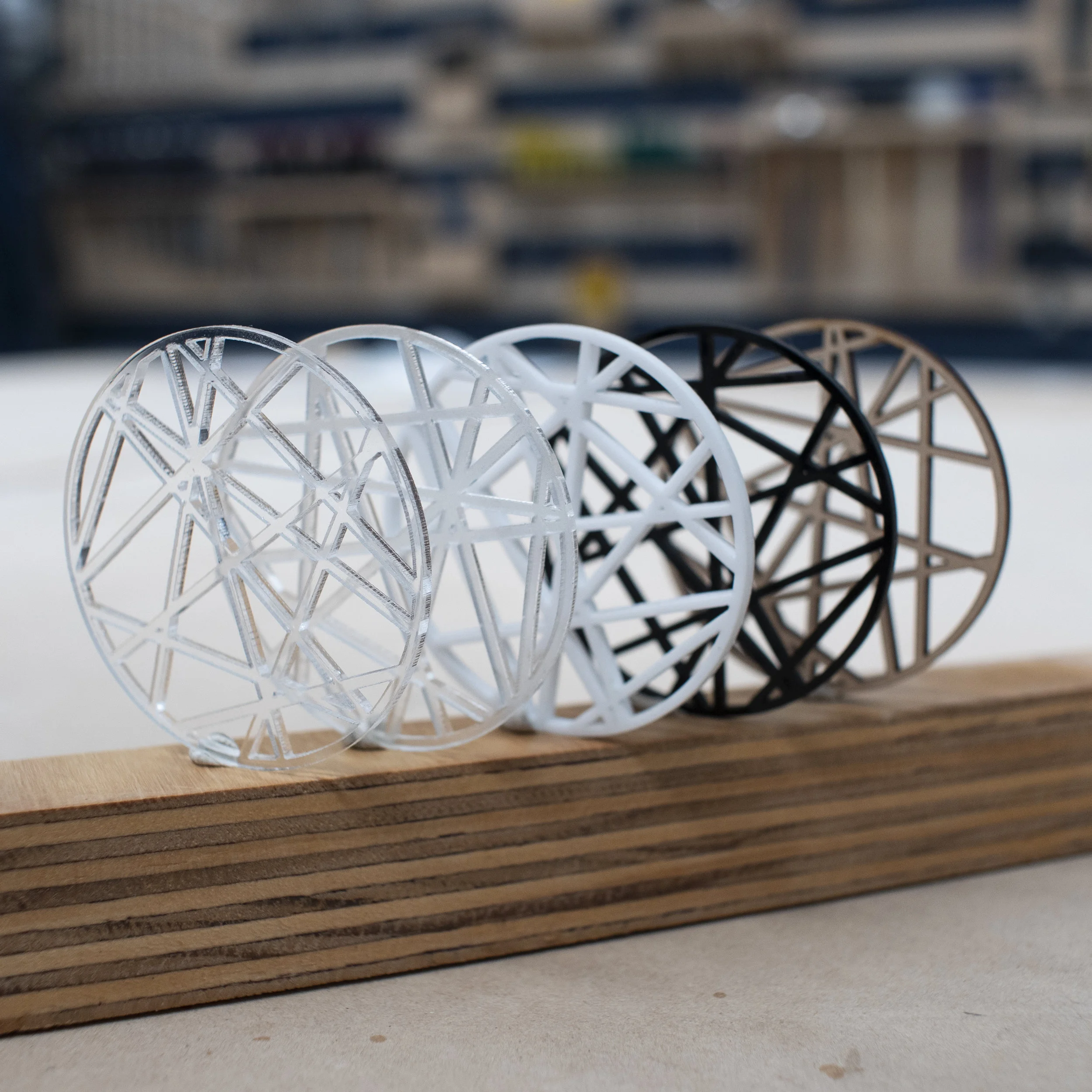

From left to right: Clear acrylic, Satin frosted acrylic, White acrylic, Black acrylic, 3mm mDF

From left to right: Clear acrylic, Satin frosted acrylic, White acrylic, Black acrylic, 3mm mDF



Listed below are our laser cutting materials.

Please take note of the sizes specified as they differ for each material.
A specific size must be selected in order for quotes to be completed.

We usually have the following sheet goods in stock for laser cutting:

Acrylic

  • Opaque White - 2mm / 3mm / 4.5mm / 6mm

  • Clear - 2mm / 3mm

  • Satin Frosted Clear - 2mm

  • Black - 2mm

  • Coloured - 3mm (inquire for stock and colour selection)

    The following sizes apply to all acrylic sheets:

    • Full bed: 500 x 700mm

    • Full sheet: 500 x 700mm

    • Half sheet: 500 x 350mm



Timber

  • MDF - 3mm / 6mm

    • Full bed: 500 x 700mm

    • Full sheet: 600 x 450mm

    • Half sheet: 300 x 450mm

  • Basswood Ply - 3mm

    • Full bed: Not available

    • Full sheet: 300 x 455mm

    • Half sheet: 300 x 227mm

  • Timber Veneer Coated MDF - 3mm (inquire for veneer selection)

    • Full bed: Not available

    • Full sheet: 300 x 600mm

    • Half sheet: 300 x 300mm

Card

  • Strawboard

    • Full bed: 500 x 700mm

    • Full sheet: 508 x 405mm

    • Half sheet: 345 x 457mm

  • Mattboard - White

    • Full bed: 500 x 700mm

    • Full sheet: 508 x 405mm

    • Half sheet: 254 x 405mm

If you do not see your preferred material listed above please get in touch and we will try to source it for you.

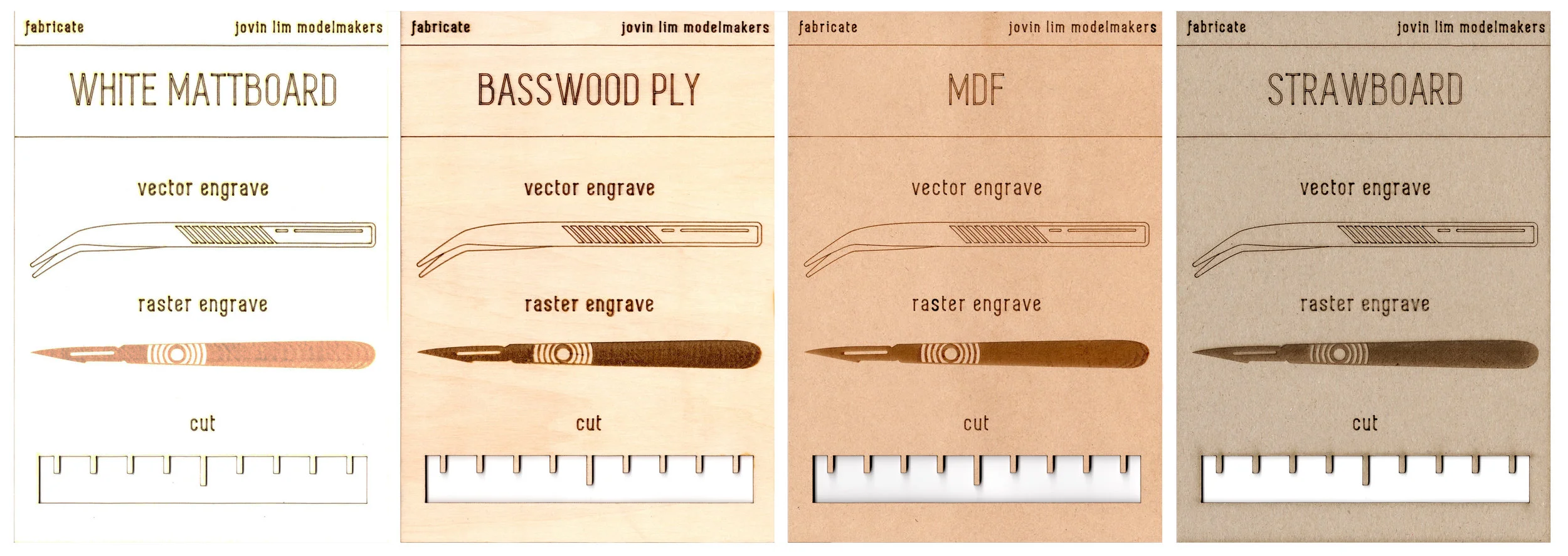

Material samples

Material samples

Extras

The following can be added to material before cutting for an additional charge. Please specify in the quote form if you would like any of these applied to your material.

  • Application Tape

When laser cutting or engraving is done on any timber materials, it is highly recommended that application tape is first applied to both sides of the material. Application tape is similar to masking tape. When applied to material before laser cutting, it helps to minimize the naturally occurring burning and discoloration caused by the laser on areas surrounding the cuts or engravings. See the image to the right to see the difference between using and not using application tape on timber.

We recommend requesting application tape when using any timber products. Products will be shipped with the application tape still intact for added protection during shipping.

It is not necessary to apply to acrylic as acrylic is less likely to burn and also already has a protective coating. Using application tape on cardboard products is not recommended as it can damage the material upon removal.

  • Adhesive Backing

A sheet of adhesive backing can be applied to the reverse of your material before cutting. Products will be shipped with the outer layer of backing paper intact.

Laser engravings on MDF shown with and without application tape

Laser engravings on MDF shown with and without application tape
